Circuit breaker frame, adapt EasyPact NW, 4 Poles, 1600A, H, withdrawal
Price on Request

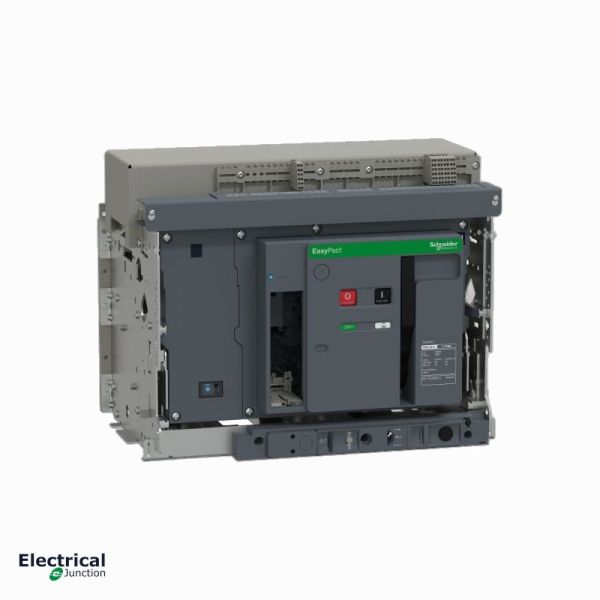

ENW24152 EasyPact NW 1600A 4P Withdrawable Air Circuit Breaker – Specs, Price & Datasheet
- High-Performance 4-Pole Circuit Breaker Frame: The Schneider Electric ENW24152 EasyPact NW is a 4-pole, 1600A withdrawable circuit breaker frame with breaking capacity code H, designed for AC distribution networks and rated up to 690V AC (50/60 Hz) conforming to IEC 60947-2.
- Exceptional Short-Circuit Protection: Delivers a rated short-circuit making capacity (Icm) of 143 kA at 220-440V AC and 105 kA at 690V AC, with an ultimate breaking capacity (Icu) of 66 kA at 440V and 50 kA at 690V, ensuring robust protection in demanding industrial environments.
- Withdrawable (Drawout) Mounting for Easy Maintenance: Features a drawout mounting mode with rear horizontal/vertical connection, enabling safe and fast extraction without disturbing the busbar connections - ideal for installations requiring minimal downtime.
- Smart Diagnostics and Easy Commissioning: Equipped with health status monitoring, the EPD App integration allows real-time diagnostics and data sharing, while push-button control and clear contact position indicators simplify commissioning and routine checks.
- Certified and Built for Harsh Environments: Complies with IEC 60947-2 and holds GOST, CCS, and CCC certifications. Rated IP40 with pollution degree 4, and operable between -5 to +60 degrees Celsius, suitable for heavy industrial and distribution applications with mechanical durability of up to 20,000 cycles.
Availability:
In stock
SKU
MAS03365ENW24152
FREQUENTLY ASKED QUESTION
What is the rated current and voltage of the Schneider Electric ENW24152 circuit breaker?
The ENW24152 EasyPact NW circuit breaker has a rated current ([In]) of 1600A at 40°C and a rated operational voltage ([Ue]) of 690V AC (50/60 Hz), with a rated insulation voltage ([Ui]) of 1000V AC conforming to IEC 60947-2.
What is the breaking capacity of the ENW24152 EasyPact NW circuit breaker?
The ENW24152 has an ultimate breaking capacity (Icu) of 66 kA at 220–440V AC and 50 kA at 690V AC. The rated service breaking capacity (Ics) is 65 kA at 220–440V and 50 kA at 690V, and the rated short-circuit making capacity (Icm) is 143 kA at 220–440V and 105 kA at 690V, all conforming to IEC 60947-2.
What mounting type does the ENW24152 use and how is it connected?
The ENW24152 uses a drawout (withdrawable) mounting mode supported by a rail, with rear connection in horizontal or vertical position. The connection pitch is 115 mm without spreader, making it easy to install and withdraw for maintenance without disrupting the busbar.
What certifications and standards does the ENW24152 comply with?
The Schneider Electric ENW24152 EasyPact NW circuit breaker complies with IEC 60947-2 and holds GOST, CCS, and CCC product certifications. It is rated IP40 for degree of protection and is designed to pollution degree 4 as per IEC 60664-1.
What are the dimensions, weight, and warranty of the ENW24152 circuit breaker?
The ENW24152 measures 439 mm (H) x 556 mm (W) x 395 mm (D) and weighs 85 kg. It has a mechanical durability of up to 20,000 cycles (with maintenance) and comes with an 18-month contractual warranty. Operating temperature range is -5 to +60 degrees Celsius.
More Information
| SKU | MAS03365ENW24152 |
|---|---|
| Manufacturer | Schneider Electric |
| Weight (kg) | 85.000000 |
| Model Number | ENW24152 |
| Mounting Mode | Drawout |
| Number Of Poles | 4P |
| RATED AMPERE (A) | 1600 |
| Mode Of Control | Manually Operated (Non Motorised) |
| [Icw] Rated Short-Time Withstand Current | 65 kA (1 s) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Electrical Durability | Category B: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Mechanical Durability | 20000 cycles (with maintenance) conforming to IEC 60947-2 |
| Standard | EN/IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Neutral Position | Left |
| Rated Frequency | 50/60 Hz |
| IP degree of protection | IP40 |
| Ambient Air Temperature for Operation | -5…60 °C |
| Network Type | AC |
| Mercury Free | Yes |
| Product Certification | GOST CCS CCC IEC |
| Warranty | 18 months |
| Circuit Breaker Type | Air Circuit Breakers |
