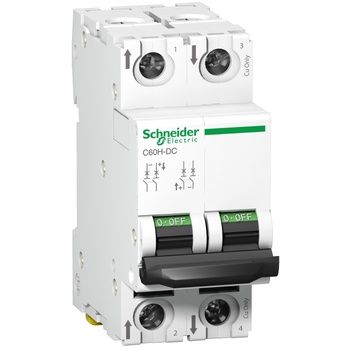

Schneider Electric Acti9 C60H-DC A9N61538 50A 2P C-Curve DC MCB 6kA
AED 340.00
Genuine Schneider Electric Acti9 C60H-DC 50A 2-pole DC MCB (A9N61538) for solar PV and DC distribution. C-curve, 6kA, 500V DC. In stock in Dubai for GCC and export.
Availability:
In stock
SKU
A9N61538
The Schneider Electric A9N61538 is an Acti9 C60H-DC miniature circuit breaker rated 50A, 2-pole, C-curve, built for DC circuit protection in solar PV, battery, and DC distribution systems. It provides a 6kA breaking capacity to IEC/EN 60947-2 with magnetic arc control for fast, safe DC breaking and full isolation.
- Range: Acti9 C60H-DC
- Rated current (In): 50A
- Poles: 2P
- Tripping curve: C
- Rated operational voltage (Ue): 500V DC
- Breaking capacity (Icu): 6kA (IEC/EN 60947-2)
- Insulation voltage (Ui): 500V DC
- Impulse withstand (Uimp): 6kV
- Mounting: 35mm symmetric DIN rail
- Width: 4 modules of 9mm
- Standard: IEC/EN 60947-2
| SKU | A9N61538 |
|---|---|
| Weight (kg) | 0.256000 |
| Manufacturer | Schneider Electric |
| Voltage (volt AC) | 500 V DC |
| Standard | EN 60947-2 |
| Rated Frequency | 50/60 Hz |
| Model Number | A9N61538 |
| Circuit Breaker Type | Miniature Circuit Breakers |
