Masterpact NW to MTZ Upgrade: The Global Sourcing & Retrofit Guid

The Schneider Electric Masterpact NW has been the backbone of industrial power distribution for decades. however, as the industry moves toward IoT integration and Smart Panels, facility managers from Mumbai to London are facing the same question: How do we upgrade to the Masterpact MTZ without massive downtime or switchboard modifications?

Why Upgrade? The Strategic Advantage

Upgrading to the Masterpact MTZ isn't just about replacing old hardware; it’s about future-proofing your operations.

• Wireless Connectivity: Maintenance teams in the USA and UK are adopting the MTZ for its Bluetooth capabilities, allowing for "Closed-Door" diagnostics that significantly improve Arc Flash safety.

• Precision Metering: For industries in Mumbai and Africa, the MTZ provides Class 1 energy metering, essential for ESG reporting and power quality monitoring.

• Plug-and-Play Simplicity: Schneider designed the MTZ to be a direct physical replacement for the NW, meaning no copper busbar changes are required.

Step-by-Step: The NW to MTZ Retrofit Process

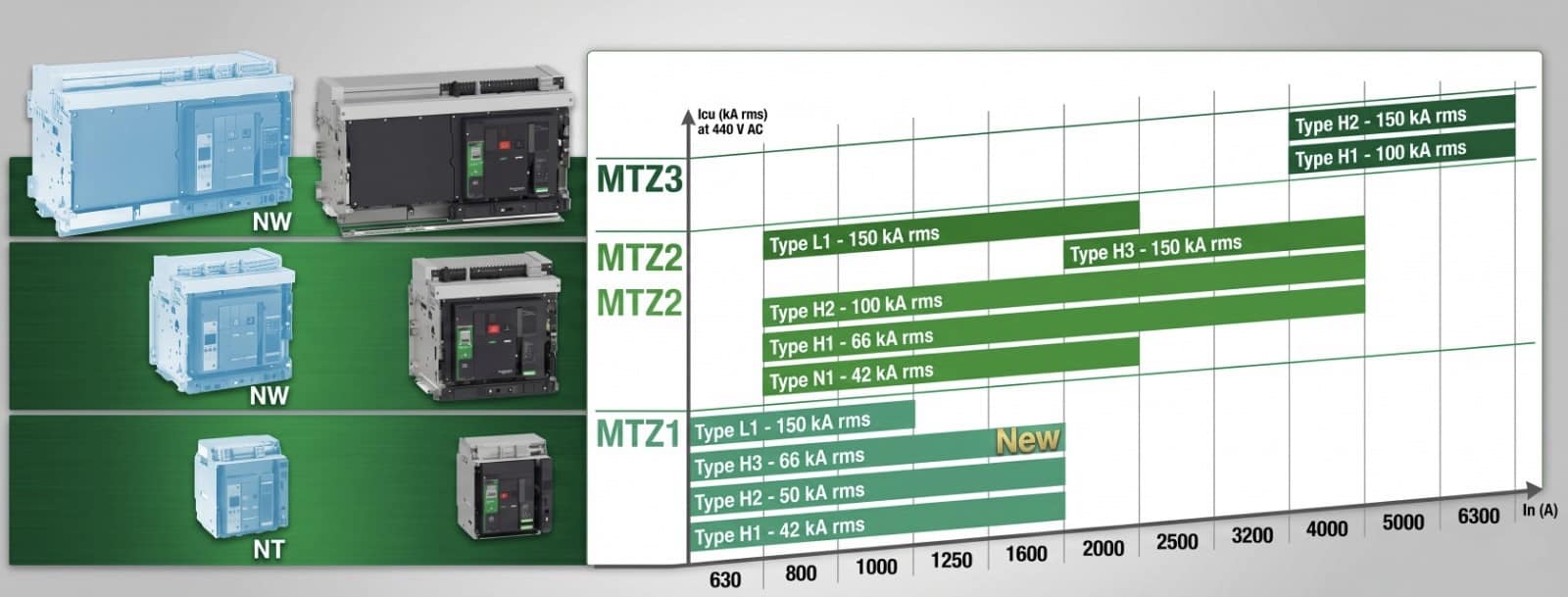

1. Compatibility Verification

Before sourcing, you must match your existing NW frame to the correct MTZ model:

• NW06 to NW16: Replaced by MTZ1

• NW08 to NW40: Replaced by MTZ2

• NW40 to NW63: Replaced by MTZ3

2. The "ECOFIT" Selection

For most projects in India and Africa, we recommend the ECOFIT™ approach. This involves keeping the existing chassis (cradle) and swapping the "Moving Part." If the cradle is damaged, a full "Plug-and-Play" replacement is required.

3. Installation & Digital Commissioning

Unlike the NW, the MTZ requires digital setup. Using the EcoStruxure Power Commission software, you can upload the protection settings from your old Micrologic trip unit directly to the new Micrologic X controller.

Global Sourcing: Slaying the Lead-Time Monster

In the current global market, lead times for ACBs in the USA and UK can often stretch into months. Electrical Junction solves this by maintaining ready stock in our global hubs.

• India (Mumbai): Local stock at Mas Global Enterprises with GST-compliant invoicing for immediate domestic delivery.
• USA & UK: We specialize in the rapid air-freight of hard-to-find Masterpact units, helping Western facilities avoid critical downtime.
• Africa: We provide consolidated shipping for full retrofit kits—including breakers, gateways, and communication modules—to Kenya, Nigeria, and beyond.

Frequently Asked Questions

Q: Can I use my existing NW cradle for a new MTZ breaker? Yes. Schneider Electric designed the MTZ2 and MTZ3 to be compatible with NW cradles. This allows for a "Plug-and-Play" swap in under an hour, provided the cradle is in good technical condition.

Q: Do you ship Schneider MTZ units to the USA and UK? Absolutely. We leverage our Dubai export hub to provide expedited shipping to the USA and UK, often bypassing the long lead times currently found in domestic Western supply chains.

Q: Does your Mumbai office provide technical support for MTZ upgrades? Yes. Our Mumbai branch, Mas Global Enterprises, offers local technical guidance and GST billing, ensuring Indian contractors get the right retrofit kit for their specific switchboard configuration.
